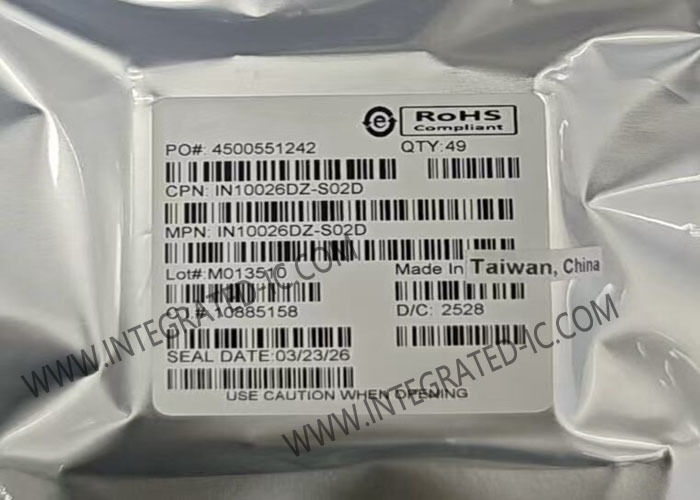

IN10026DZ-S02D Ethernet IC 112Gbaud Quad-Channel Differential Mach-Zehnder Linear Driver

IN10026DZ-S02D Ethernet IC 112Gbaud Quad-Channel Differential Mach-Zehnder Linear Driver

Product Description Of IN10026DZ-S02D

IN10026DZ-S02D is a low power, quad-channel, differential Mach-Zehnder (MZ) modulator driver that is designed to support 800G/1.6T PAM4 optical modules and 400G coherent systems.

IN10026DZ-S02D supports differential input voltages to deliver a differential output swing, while designed to drive flexible output termination loads.

IN10026DZ-S02D also includes peak detectors and temperature monitoring circuits. The peak detector output and the temperature monitor reading can be read directly in the analog domain or in the digital domain via the SPI interface.

Specification Of IN10026DZ-S02D

Number of channels: 4 channels (differential)

Maximum baud rate: 112 Gbaud
Electrical bandwidth: High bandwidth (supports 100 Gbaud signal integrity)
Output swing: Differential, adjustable, compatible with MZ modulators
Gain: Wide-range differential gain with peaking control
Distortion: Excellent total harmonic distortion (THD)
Power consumption: Low-power design
Interface: SPI control interface (digital configuration)

Features Of IN10026DZ-S02D

• Supports baud rates up to 112 Gbaud
• High electrical bandwidth
• Adjustable gain with peaking control
• Wide differential electrical gain range
• Excellent THD
• Low power consumption
• Peak detector per channel
• SPI control interface
• Available in die form

Applications Of IN10026DZ-S02D
• 800G/DR4 and 1.6T DR8
• 400G coherent system
