LPC824M201JDH20 Microcontroller MCU ARM Cortex M0+ Microcontroller IC 30MHz 32Bit MCU

LPC824M201JDH20 Microcontroller MCU ARM Cortex M0+ Microcontroller IC 30MHz 32Bit MCU
LPC824M201JDH20 Microcontroller MCU ARM Cortex M0+ Microcontroller IC 30MHz 32Bit MCU

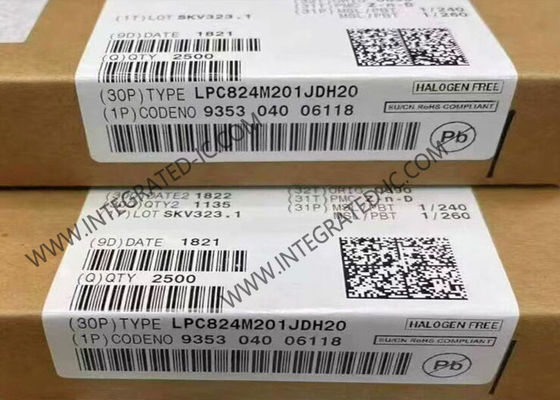

Großes Bild :  LPC824M201JDH20 Microcontroller MCU ARM Cortex M0+ Microcontroller IC 30MHz 32Bit MCU

Produktdetails:
Herkunftsort: CN
Markenname: Original Factory
Zertifizierung: Lead free / RoHS Compliant
Modellnummer: LPC824M201JDH20
Zahlung und Versand AGB:
Min Bestellmenge: 10
Preis: Contact for Sample
Verpackung Informationen: TSSOP-20
Lieferzeit: 5-8 Arbeitstage
Zahlungsbedingungen: T/T, L/C, Western Union

LPC824M201JDH20 Microcontroller MCU ARM Cortex M0+ Microcontroller IC 30MHz 32Bit MCU

Beschreibung
Teilenummer: LPC824M201JDH20 Kern: ARM Cortex M0+
Programmspeichergröße: 32 kb Maximale Taktfrequenz: 30 MHZ
Daten RAM -Größe: 8 KBS Anzahl der I/Os: Input/Output 16

LPC824M201JDH20 Microcontroller MCU ARM Cortex M0+ Microcontroller IC 30MHz 32Bit MCU



Product Description Of LPC824M201JDH20

LPC824M201JDH20 is an ARM Cortex-M0+ based, low-cost 32-bit MCU family operating at CPU frequencies of up to 30 MHz. LPC824M201JDH20 support up to 32 KB of flash memory and 8 KB of SRAM. The peripheral complement of the LPC82x includes a CRC engine, four I2C-bus interfaces, up to three USARTs, up to two SPI interfaces, one multi-rate timer, self-wake-up timer, and state-configurable timer with PWM function (SCTimer/PWM), a DMA, one 12-bit ADC and one analog comparator, function-configurable I/O ports through a switch matrix, an input pattern match engine, and up to 29 general-purpose I/O pins.


Specification Of LPC824M201JDH20

Core Processor
ARM® Cortex®-M0+
Core Size
32-Bit
Speed
30MHz
Connectivity
I2C, SPI, UART/USART
Peripherals
Brown-out Detect/Reset, DMA, POR, PWM, WDT
Number of I/O
16
Program Memory Size
32KB (32K x 8)
Program Memory Type
FLASH
RAM Size
8K x 8
Voltage - Supply (Vcc/Vdd)
1.8V ~ 3.6V
Data Converters
A/D 5x12b
Oscillator Type
Internal
Operating Temperature
-40°C ~ 105°C (TA)
Mounting Type
Surface Mount
Supplier Device Package
20-TSSOP
Package / Case
20-TSSOP (0.173", 4.40mm Width)


Features Of LPC824M201JDH20

System:
ARM Cortex-M0+ processor (revision r0p1), running at frequencies of up to 30 MHz with single-cycle multiplier and fast single-cycle I/O port.
ARM Cortex-M0+ built-in Nested Vectored Interrupt Controller (NVIC).
System tick timer.
AHB multilayer matrix.
Serial Wire Debug (SWD) with four break points and two watch points. JTAG boundary scan (BSDL) supported.
Memory:
Up to 32 KB on-chip flash programming memory with 64 Byte page write and erase. Code Read Protection (CRP) supported.
8 KB SRAM
Clock generation:
12 MHz internal RC oscillator trimmed to 1.5 % accuracy that can optionally be used as a system clock.
Crystal oscillator with an operating range of 1 MHz to 25 MHz.
Programmable watchdog oscillator with a frequency range of 9.4 kHz to 2.3 MHz
Unique device serial number for identification.
Single power supply (1.8 V to 3.6 V).
Operating temperature range -40 °C to +105 °C


Applications Of LPC824M201JDH20
Sensor gateways
Simple motor control
Industrial
Portables and wearables
Gaming controllers
Lighting
8/16-bit applications
Motor control
Consumer
Fire and security applications
Climate control
