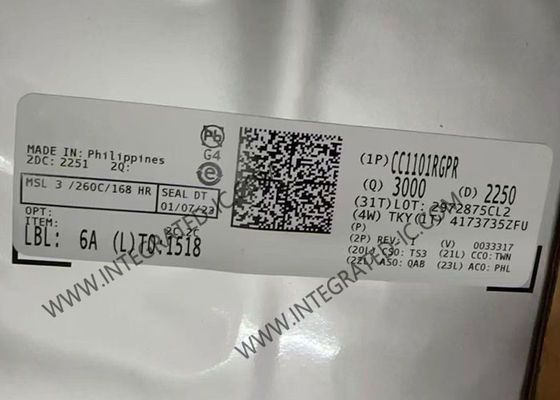

CC1101RGPR Wireless Communication Module Low Power Sub-1 GHz Wireless Transceiver

CC1101RGPR Wireless Communication Module Low Power Sub-1 GHz Wireless Transceiver​

Product Description Of CC1101RGPR

CC1101RGPR is a low-cost sub-1 GHz transceiver designed for very low-power wireless applications. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 315, 433, 868, and 915 MHz, but can easily be programmed for operation at other frequencies in the 300-348 MHz, 387-464 MHz and 779-928 MHz bands.

Specification Of CC1101RGPR

Features Of CC1101RGPR

RF Performance
High sensitivity
-116 dBm at 0.6 kBaud, 433 MHz, 1% packet error rate
-112 dBm at 1.2 kBaud, 868 MHz, 1% packet error rate
Low current consumption (14.7 mA in RX, 1.2 kBaud, 868 MHz)
Programmable output power up to +12 dBm for all supported frequencies
Excellent receiver selectivity and blocking performance
Programmable data rate from 0.6 to 600kbps
Frequency bands: 300-348 MHz, 387-464 MHz and 779-928 MHz
Low-Power Features
200 nA sleep mode current consumption
Fast startup time; 240 µs from sleep to RX or TX mode
Wake-on-radio functionality for automatic low-power RX polling
Separate 64-byte RX and TX data FIFOs (enables burst mode data transmission)

Applications Of CC1101RGPR

Ultra low-power wireless applications operating in the 315/433/868/915 MHz ISM/SRD bands
Wireless alarm and security systems
Industrial monitoring and control
Wireless sensor networks
AMR – Automatic Meter Reading
Home and building automation
Wireless MBUS
