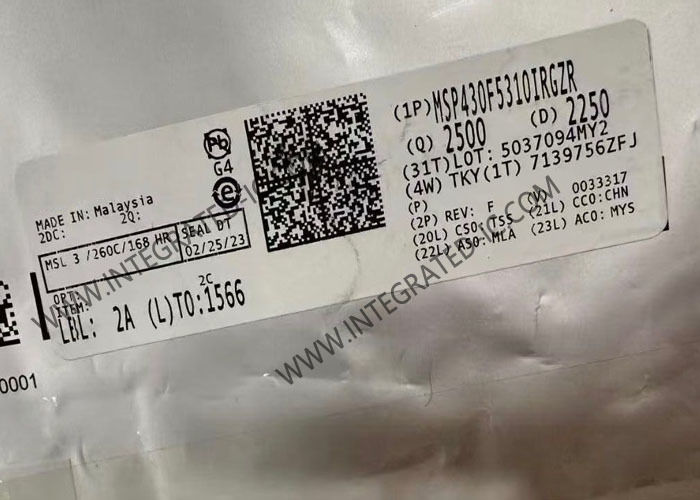

MSP430F5310IRGZR Microcontroller MCU Ultra-Low-Power 16-Bit 25MHz Microcontroller 48-VQFN

MSP430F5310IRGZR Microcontroller MCU Ultra-Low-Power 16-Bit 25MHz Microcontroller 48-VQFN

Product Description Of MSP430F5310IRGZR
MSP430F5310IRGZR microcontroller configurations with a 3.3-V LDO, four 16-bit timers, a high-performance 10-bit ADC, two USCIs (1), a hardware multiplier, DMA, an RTC module with alarm capabilities, and 31 or 47 I/O pins.

Specifications Of MSP430F5310IRGZR

Features Of MSP430F5310IRGZR
Low supply-voltage range:
3.6 V down to 1.8 V
Ultra-low power consumption
Active mode (AM)
All system clocks active
195 µA/MHz (typical) at 8 MHz, 3 V, flash program execution
115 µA/MHz (typical) at 8 MHz, 3 V, RAM program execution
Standby mode (LPM3)
Real-time clock (RTC) with crystal, watchdog, and supply supervisor operational, full RAM retention, fast wakeup:
1.9 µA (typical) at 2.2 V,
2.1 µA (typical) at 3 V
Low-power oscillator (VLO), general-purpose counter, watchdog, and supply supervisor operational, full RAM retention, fast wakeup:
1.4 µA (Typical) at 3 V
Off mode (LPM4)
Full RAM retention, supply supervisor operational, fast wakeup:
1.1 µA at 3 V (typical)
Shutdown mode (LPM4.5)
0.18 µA at 3 V (typical)
Wake up from standby mode in less than 5 µs
16-bit RISC architecture, extended memory, up to 25-MHz system clock
Flexible power-management system
Fully integrated LDO with programmable regulated core supply voltage
Supply voltage supervision, monitoring, and brownout
Unified clock system (UCS)
FLL control loop for frequency stabilization
Low-power low-frequency internal clock source (VLO)
Low-frequency trimmed internal reference source (REFO)
32-kHz watch crystals (XT1)
High-frequency crystals up to 32 MHz (XT2)
16-bit Timer TA0, Timer_A with five capture/compare registers
16-bit Timer TA1, Timer_A with three capture/compare registers
16-bit Timer TA2, Timer_A with three capture/compare registers
16-bit Timer TB0, Timer_B with seven capture/compare shadow registers
Two universal serial communication interfaces (USCIs)
USCI_A0 and USCI_A1
Enhanced UART supports automatic baud-rate detection
IrDA encoder and decoder
Synchronous SPI
USCI_B0 and USCI_B1
I2C
Synchronous SPI
Integrated 3.3-V power system
10-bit analog-to-digital converter (ADC) with window comparator
Comparator
Hardware multiplier supports 32-bit operations
Serial onboard programming, no external programming voltage needed
3-channel internal DMA
Basic timer with RTC feature
Device Comparison summarizes the available family members

Applications Of MSP430F5310IRGZR
Analog and digital sensor systems
Digital motor control
Remote controls
Thermostats
Digital timers
Hand-held meters
