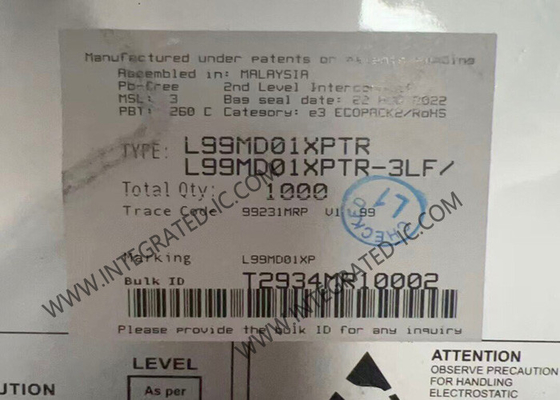

L99MD01XPTR Integrated Circuit Chip Octal Half-Bridge Driver With SPI Control For Automotive Application
L99MD01XPTR Integrated Circuit Chip Octal Half-Bridge Driver With SPI Control For Automotive Application
Beschreibung
Part Number:
L99MD01XPTR
Output Current::
250 mA
Operating Supply Current::
4.2 mA
Minimum Operating Temperature::
- 40 C
Maximum Operating Temperature::
+ 150 C
Supply Voltage - Max::
38 V
Hervorheben:
L99MD01XPTR
,
L99MD01XPTR Integrated Circuit Chip
,
SPI Control Octal Half-Bridge Driver
L99MD01XPTR Integrated Circuit Chip Octal Half-Bridge Driver With SPI Control For Automotive Application
Product Description Of L99MD01XPTR
L99MD01XPTR is an octal half-bridge driver for automotive applications.
The device is intended to drive DC and/or stepper motors. Using the boost converter it’s possible to drive 4 stepper motors simultaneously. Without boost converter the system is able to run 3 stepper motors in sequential mode or 2 stepper motors simultaneously. The octal half bridge configuration allows also to drive 4 DC-motors simultaneously and 7 DC-motors sequentially.
The integrated 24 bit standard Serial Peripheral Interface (SPI) controls all outputs and provides diagnostic information: normal operation, open-load in on-state, overcurrent, temperature warning and overtemperature.
Specifications Of L99MD01XPTR
Half Bridge
250 mA
4.2 mA
- 40 C
+ 150 C
Supply Voltage - Max:
38 V
Supply Voltage - Min:
6 V
Unit Weight:
484.700 mg
Feature Of L99MD01XPTR
8 half bridges
RON = typ. 0.9 Ω (HS), 0.64 Ω (LS) @ Tj= 25 °C
Current limit of each output at min. 0.8 A
Intrinsic DC/DC step up converter driving an external MOSFET
PWM mode option for all half bridges for hold current
Internal PWM generation
Two current monitor outputs
SPI interface for data communication
Temperature warning
All outputs overtemperature protected
All outputs short circuit protected
VCCsupply voltage 3.0 to 5.3 V
Very low current consumption in standby mode typ. 5 μA
VSoperating range compliant: 6 V – 18 V
Applications Of L99MD01XPTR
Stepper motor driver and / or DC
Intended to drive HVAC flaps
Other Supply Product Types
Part Number
Package
MCP48CMD01-E/UN
10-MSOP
MCP47CVD02-E/UN
10-MSOP
MCP47CVD11-E/MG
16-QFN
MCP48CVD02-E/MG
16-QFN
MCP48CMD02-E/MG
16-QFN
MCP48CMD12-E/UN
10-MSOP
MCP48CVD01-E/MG
16-QFN
MCP47CVD01-E/UN
10-MSOP
MCP48CMD12-E/MG
16-QFN
MCP47CVD12-E/UN
10-MSOP
MCP48CVD22-E/MG
16-QFN
MCP47CMD01-E/UN
10-MSOP
MCP47CMD11-E/MG
16-QFN
MCP47CVD02-E/MG
16-QFN
MCP47CMD12-E/UN
10-MSOP
MCP47CMD21-E/UN
10-MSOP
MCP47CVD11-E/UN
10-MSOP
MCP48CVD01-E/UN
10-MSOP
MCP47CVD21-E/UN
10-MSOP
MCP47CMD21-E/MG
16-QFN
MCP48FVB12T-E/UNVAO
10-MSOP
MCP48FVB01T-E/UNVAO
10-MSOP
MCP47FVB12A0T-E/STVAO
8-TSSOP
SYA75603ATWLVAO
16-VQFN
SYA75603BTWLVAO
16-VQFN
SYA75604BTWLVAO
16-VQFN
SYA75604ATWLVAO
16-VQFN
PLA133-47SAVAO
8-SOIC
SY75608TWL
48-VQFN
SY75612TWL
56-VQFN
